The Advanced 4-in-1 Digital X-ray Imaging System
Green X 12 is an advanced 4-in-1 digital x-ray imaging system that incorporates Pano, Ceph (optional), CBCT, and Model Scan. With Vatech’s extensive experience in the dental imaging field, the Green X provides high-quality images with lower radiation by combining image processing. This will improve your diagnostic accuracy and lead to increased treatment planning and patient satisfaction.

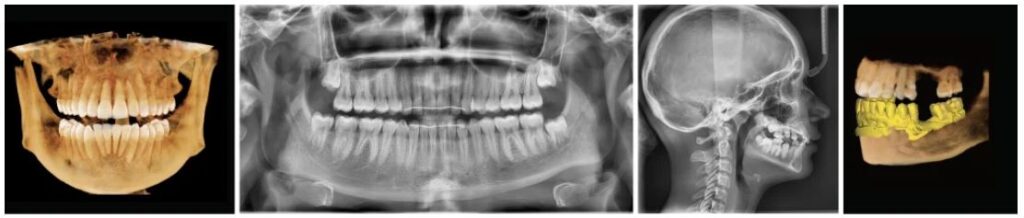

- 4-in-1 Digital X-ray Imaging System: PANO | CEPH | CBCT | MODEL SCAN
- Multi FOV Selection
- Green Scan Time
- Endo Mode with 0.05mm Voxel Size
- 41 Layers Panoramic Images: Insight Pan
- 3D Scanning for Model

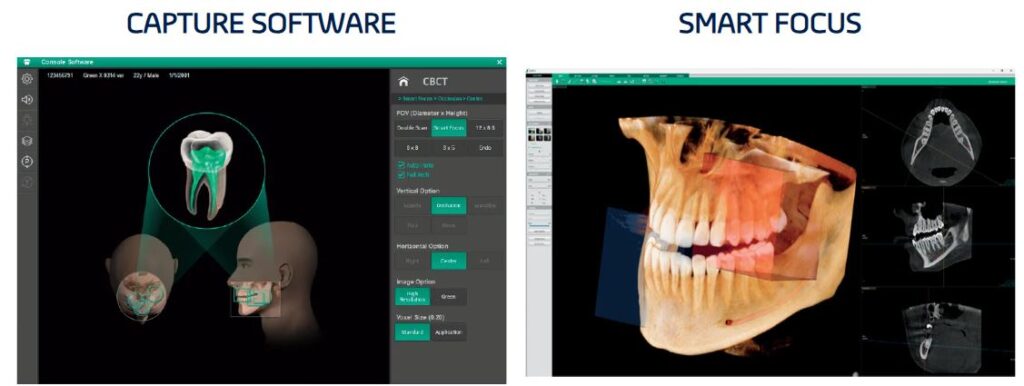

Smart Focus : 1 Scan, 5 Images
With Green X 12, you will get high-resolution images of multiple treatment areas with a single shot. With 1 scan, you get 5 different high-resolution images: three 4×4, one 12×8.5 image and one Auto PANO image. Other advantages are minimal X-ray exposure to the patients and less work for staff, which means a faster and more efficient workflow.
Multi FOV Selection
Green X offers a range of selectable fields of view. The Multi FOV option allows users to select the optimum FOV mode while minimising exposure to areas that are not in the region of interest. The selection includes the following FOV sizes for diagnostic needs: 16×9, 12×9, 8×9, 8×5, 5×5 and 4×4. These options cover the full arch region, sinus and left/right TMJ, and suits most oral surgery cases and multiple implant surgeries.
FOV 4×5/5×5
Region: Single tooth capture
Clinical Implication: Implant single site, Endo, Perio, Complex impaction (3rd), OMS, Supernumerary-Ortho
FOV 8×5/8×8
Region: Central dentition, TMJ (R or L)
Clinical Implication: Implantology, Guided Surgery, General Dentist, OMS, Orthodontics
FOV 12×8.5
Region: Dual arch including sinus and nerve, TMJ (R or L)
Clinical Implication: Surgical guides, Sinus lifts, Bone grafting, Bi lateral sinus augmentation

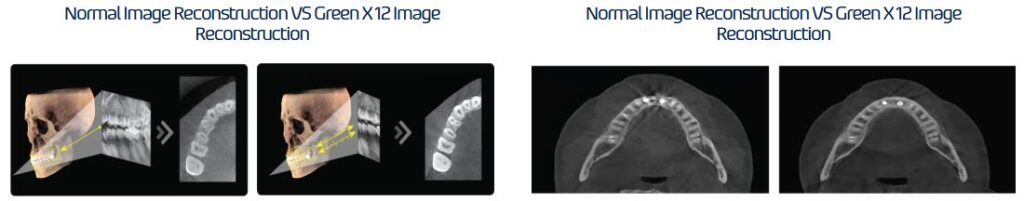

Compressed Sensing Technology
Vatech dramatically improves its images quality with much less artifact and noise via its compressed sensing technology (CST) iterating its reconstruction process 10 times more than the normal amount to depict the object’s true representation.
Green Scan Time
Due to its scan time, the Green X minimizes motion artifact and enables faster workflow. It produces superb diagnostic images, which will be a source of pride for any dental practice.

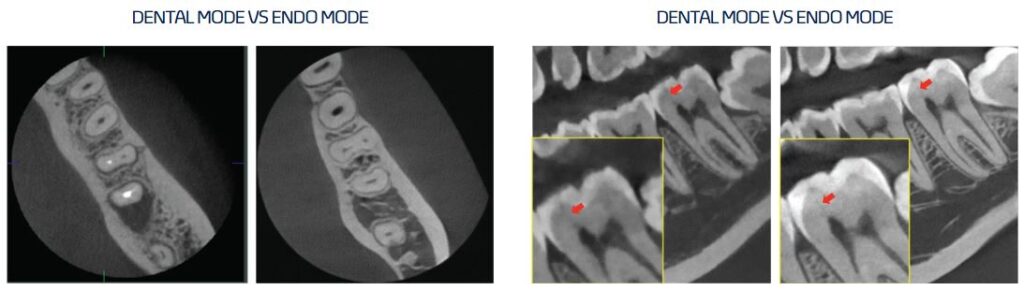

Endo Mode with High Resolution
With its 4cm x 4cm volume mode and 49.5 micron voxel size, the Endo mode will optimise treatment of highly-focused regions of interest. It is ideal for endodontic use because the dentist is able to achieve an extraordinary image in a high-resolution voxel size.

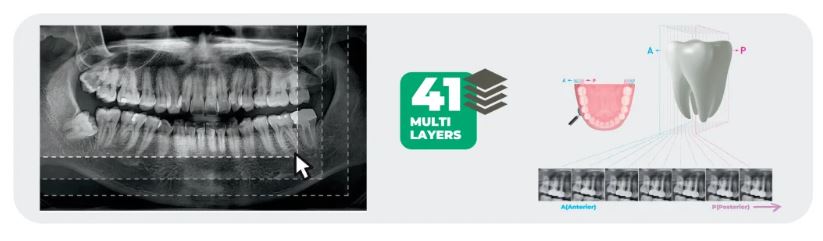

Insight 2.0
The Insight Pan is capable of taking a multilayered panoramic image, called an Insight Pan, which provides a unique in-depth look across a single focal trough. Insight 2.0 has an upgraded free FOV feature so you will be able to capture just the area of interest.
